Attributes

reviewed: 23 February 2025

The Subtle Difference Between Attributes and Properties

We have already seen the subtle difference between entities and business objects. A similar difference exists between the terms attributes and properties. You will not get a knock on the door from the CaseMaster police when you use these terms interchangeably, but it is worth understanding the difference.

We have seen that an entity is the definition and a business object is an instantiation.

Similarly, an entity has attributes and a business objects has properties.

The Attributes Section

The attributes section contains the attributes for an entity.

    attributes: <
        id: <@bo/attribute
            label: 'Id'
            column: 'id'
            dataType: dataType.Automatic
            length: 9
            locked: true()
        >
        // and probably many more
    >

Each attribute must have a name unique within this descriptor. The rules for an attribute name are:

Start with a - z, 0 - 9 or _
Any number of a - z, 0 - 9, _, - or .

However, we strongly recommend not to use hyphens (-) or dots (.) in attribute names.

The <@bo/attribute> Property Bag

Each attribute is based on the <@bo/attribute> property bag (known as a qualified property bag).

The number of different tags may seem somewhat overwhelming but most attributes will only use a handful of the options. Most options will have a common-sense default value.

Tag	Usage	Example
autocomplete	Indicates whether input field should have autocomplete enabled	`true()`
cached	Indicates whether dynamic value is cached	`false()`
column	Name of column of table (or inline view)	`'name'`
dataType	Datatype of the attribute	`dataType.long`
defaultValue	Default value of the attribute. Do remember to use a $-expression when not a literal value	`$today()`

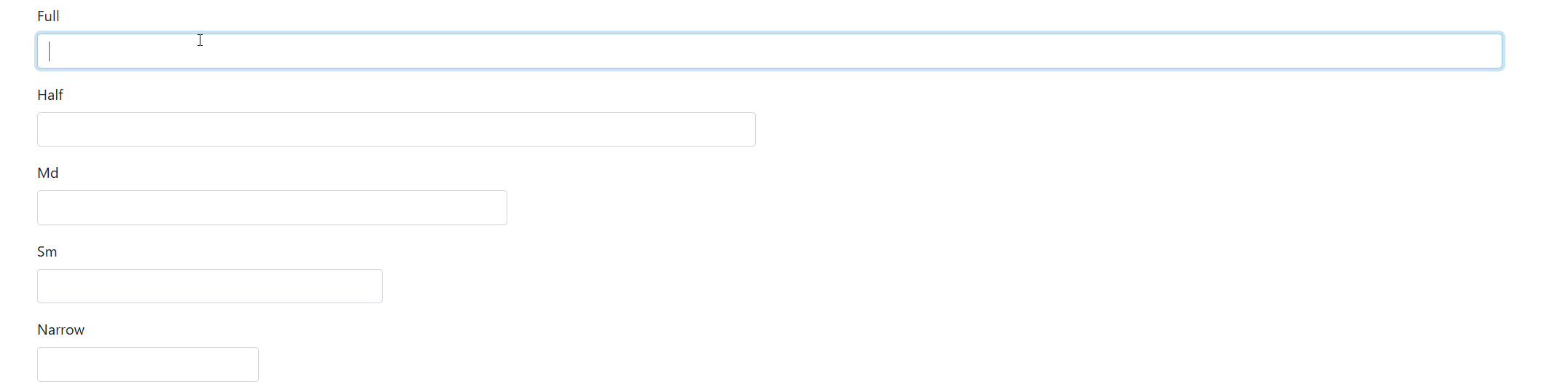

displaySize	Defines the onscreen display size
documentType	Defines the attributes document type; only relevant for document foreign keys	`IMAGE`

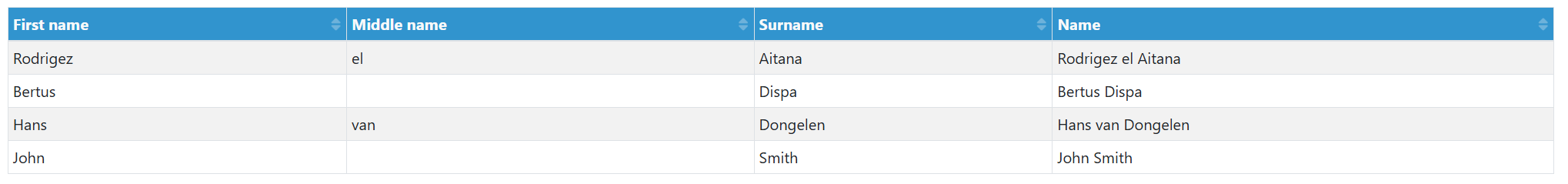

dynamicValue	Defines the dynamic value of an attribute	`$bo.invoke( [_me], 'getFullName' )`
encryption	Indicates that the value is stored in the database as encryted

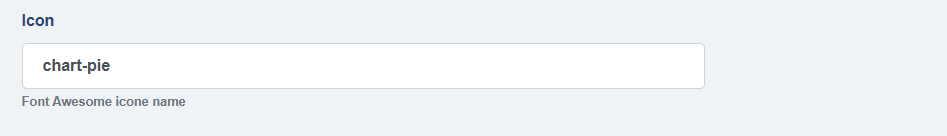

enhancers	Defines any attributes enhancers
ensureLoadGroup	Defines the dynamic attributes ensure load group	`*`
explicit	Defines if the attribute is explicit	`false()`
explicitResolveOnly	Defines if attributes should be resolved explicitly only	`true()`
foreignKey	Defines the attributes foreign key	`'crm/client'`
foreignKeyAlias	Defines the attributes foreign key alias	`'fromCCY'`
foreignKeyLabelGroup	Defines the attributes foreign key label group	`'id,name'`
foreignKeyWhereClause	Defines the foreign key where clause	`'status=3'`

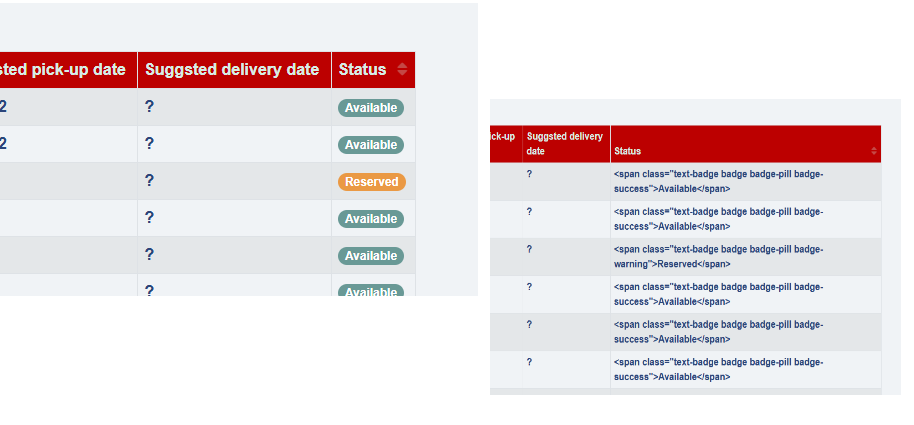

htmlSafe	Defines if the attribute is safe to be rendered as HTML	`true()`
jsonFormattedPath	Defines the Json-Path or @qualifier to be used for formatted values; only relevant to the JSON data type	`//name`
jsonOrderByPath	Defines the JsonPath to be used in order by groups; only relevant to the JSON data type	`//status`
label	The (on-screen) label of the attribute	`'Name'`
length	Maximum length of attribute content	`35`
locked	Indicates whether attribute is locked on screen	`false()`
maxValue	Maximum value of input that is accepted	`50`
minValue	Minimum value of input that is accepted	`$today()`
multiline	Indicates whether input can be multi-line	`true()`
optional	Indicates whether attribute is optional	`true()`
options	Fixed list of options, will show as drop-down on screen
outputMask	Defines the output mask for formatted output	`'standard'`
password	Indicates whether the attribute is handled as password input	`false()`
placeholder	Defines placeholder for on-screen input	`'Client NIN'`
plainTextAttr	(Relevant for dynamic attributes) Plain text equivalent attribute	`'status'`
precision	Precision for decimal / double	`2`
readOnly	Indicates whether column is read-only	`false()`
sortAttr	(Relevant for dynamic attributes) Sort equivalent attribute	`'name'`
soundex	Defines if the attribute should use soundex for qsearch	`true()`
tags	Defines the attributes tags
testData	Expression that defines the test data for this attribute	`tdg.company()`
textCase	The case of textual data	`textCase.upperCase`
virtualColumn	Valid select statement	`'select name from rdCountry where country=@me.country'`

Note that some tags result in client-side validation when you use the attribute in an HTML, online environment. These are:

optional: uses the HTML required attribute
maxValue: uses the HTML max attribute
minValue: uses the HTML min attribute
options: user can only select a value from the drop down
Adherence to the correct datatype when you use the correct pre-defined attribute type (see here)

Data Types

All CaseMaster attributes have a data type. Attributes can have the same data types as variables but one needs to be aware that not all CaseMaster datatype map sensibly on database column datatypes.

Datatype	Usage	Example	Database Equivalent
Automatic	Guaranteed unique number (maintained by CaseMaster)	`12`	Long integer
Autonumber	Guaranteed unique number (maintained by database)	`12`	Long integer
Boolean	Boolean	'true()'	bit, int or boolean (depending on database)
BusinessObject	Handle to a business object		N.a.
BusinessObjectIterator	Handle to a BO iterator		N.a.
Date	Date	12FEB25	Date
Decimal	Decimal with fixed precision	`12.88`	Decimal
Double	Double precision	9.0087	Double precision
Expression	CaseMaster expression	`add( 12, 18 )`	Unicode string
JSON	JSON	`{ "name":"Bertus" }`	Unicode string
Long	Long integer	`8`	Long integer
Object	Handle to an object		N.a.
Propertybag	CaseMaster property bag	`< a:12 b: 23 >`	Unicode string
String	Text string	`'BD'`	Unicode string
Time	Time	`22:15`	date or string (depending on database)
Timestamp	Date and time	`12FEB25 22:15:00`	timestamp

Length and Precision

For datatypes double and decimal, the precision is included in the length; for example a length of 8 and a precision of 2 means a maximum of 6 positions left of the decimal point and 2 after.

For datatype string the length 32000 is considered max length and, where supported by the database, will result in a variable, max length column. The input is not truncated, not when it is set and not when the data is entered on screen.

Options

The options feature is used to limit the input to a predefined number of options. The following example shows an example with 3 options.

    title: <@bo/attribute
        label: 'Title'
        column: 'title'
        dataType: dataType.Long
        length: 9
        options: <
            < value: 1 label: 'Mr' >
            < value: 2 label: 'Mrs' >
            < value: 3 label: 'Ms' >
        >
        optional: false()
        defaultValue: 1
        displaySize: <@bo/attribute/property/displaySize/tiny>
    >

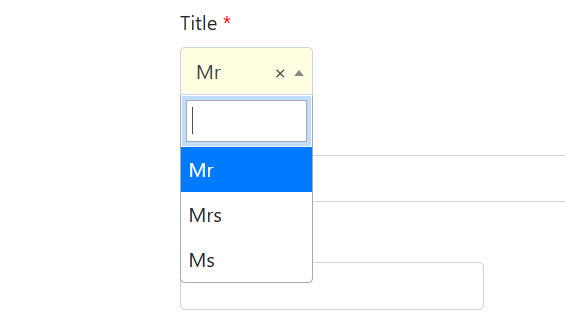

Options

Note the difference between the value (1, 2 or 3) and the on-screen label (Mr, Mrs and Ms).

Note that if you try to set the value programmatically, you will NOT get an error if the value is not 1, 2 or 3. One could argue that it should be better if CaseMaster would raise an error...

Outputmask

The outputmask option defines how the value of the attribute is formatted (e.g. for on-screen use).

Note that the output mask is mainly case insensitive.

Output mask	Datatype(s)	Output
`yes/no`	Boolean	`Yes` for `true`, `No` for `false`; takes culture into consideration
`true/false`	Boolean	`True` for `true`, `False` for `false`; takes culture into consideration
`on/off`	Boolean	`On` for `true`, `Off` for `false`; takes culture into consideration
`standard`	Decimal / double	`0.00` (2 decimal places, thousand seperator); takes culture into consideration
`currency`	Decimal / double	As `standard` but with currency symbol; takes culture into consideration
`x/y`	Boolean	Where x and y can be anything; `x` when `true`, `y` when `false`
`GBP`	Decimal / double	As `standard` but with Pound Sterling symbol; takes culture into consideration
`EUR`	Decimal / double	As `standard` but with Euro symbol; takes culture into consideration
`date`	Date	Format date using standard date formatting rules; see here
`datetime`	Date	Format date using standard timestamp formatting rules
`timestamp`	Timestamp	Synonym as datetime
`time`	Time, timestamp	Format date using standard time formatting rules
`longdate`	Date, timestamp	Format date using standard long date formatting rules
`shortdate`	Date, timestamp	Format date using standard short date formatting rules
Other	Dates, numerics	Use the special .Net formatting rules

Special rules apply for JSON; see here.

The following shows the various output masks in action (but understand that the output may differ on you server based on culture settings).

function doTest()

    response.write( format( 12, 'standard') )           response.write( '<br>' )
    response.write( format( 12.12, 'standard') )        response.write( '<br>' )
    response.write( format( 0, 'standard') )            response.write( '<br>' )
    response.write( format( -6123.78, 'standard') )     response.write( '<br>' )
    response.write( format( 12.12, 'currency') )        response.write( '<br>' )
    response.write( format( true(), 'on/off') )         response.write( '<br>' )
    response.write( format( true(), 'sure/no way') )    response.write( '<br>' )
    response.write( format( now(), 'shortdate') )       response.write( '<br>' )
    response.write( format( now(), 'longdate') )        response.write( '<br>' )
    response.write( format( now(), 'date') )            response.write( '<br>' )
    response.write( format( now(), 'time') )            response.write( '<br>' )

    // Output
    // 12.00
    // 12.12
    // 0.00
    // -6,123.78
    // £12.12
    // On
    // sure
    // 01/03/2025
    // 01 March 2025
    // 01 March 2025
    // 16:20:53

end-function

Pre-defined Attribute Types

There is a number of attribute qualifiers that provide a convenient pre-set of default values for specific purposes.

The most important are:

Helper	Usage
`<@bo/attribute/Boolean>`	Datatype defaults to Boolean
`<@bo/attribute/date>`	Datatype defaults to date
`<@bo/attribute/document>`	Foreign key set to document, default document type set to `'contact'`
`<@bo/attribute/dynamic>`	String, length max, locked and explicit
`<@bo/attribute/email>`	String, length 100, lowercase, placeholder
`<@bo/attribute/expression>`	String, length max, display size `lg` and `inputdir='ltr'`
`<@bo/attribute/id>`	Automatic, column `'id'`, length 9, locked
`<@bo/attribute/JSON>`	String, length max
`<@bo/attribute/memo>`	String, length max, multi-line
`<@bo/attribute/multilanguage>`	See here
`<@bo/attribute/password>`	String 100, `password:true()`
`<@bo/attribute/time>`	Time
`<@bo/attribute/timestamp>`	Timestamp

However, there are additional benefits for using appropriate helper attribute qualifiers where such exists. For example, some helper attribute qualifier will force the use of a specific HTML5 input type (and thus help with restricting the input to valid data only). These types are:

<@bo/attribute/email>
<@bo/attribute/url>
<@bo/attribute/telephone>
<@bo/attribute/month>
<@bo/attribute/week>
<@bo/attribute/color>

Defined Attribute Groups

CaseMaster has the concept of attribute groups. An attribute group is a named collection of zero or more attributes in a specific sequence.

Attribute groups are a great way to make a system more maintainable as often simple change requests involve adding fields to a form, removing columns from a list or changing the sequence of attributes for a calendar entry.

    attributeGroups: <
        label: <
            'surname'
        >
        description: <
            '_formalName'
            'dob'
            'email'
        >
    >

The example above shows two attribute groups: label and description. Each attribute is simply a list of zero or more attributes from this entity.

The naming conventions for attribute groups are similar to that of attributes except that it is quite common to dots (.) in the name.

An attribute cannot appear more then once in an attribute group.

Also make sure that you never have an attribute with the same name as an attribute group or refer to a non-existing attribute in an attribute group.

Ad-hoc Attribute Groups

There are many places in a script, property bag or expression where an attribute group is expected. The following expression loads client with id = 10 but onlyu loads the atributes in the description group.

    set( 'c', bo.quickLoad( 'client', 10, 'id', 'description' ) )

Anywhere in the system where a group is expected, you can also use what is known as an ad-hoc attribute group.

An ad-hoc group is simply a comma separated list of attribute and attribute group names.

Ad-hoc Group	Usage
`id`	Group with only the `id` attribute
`description`	Group with only the `description` attribute group
`id,description`	Group with the attribute `id` followed by the `description` attribute group
`description,id`	Same but group first, followed by `id`
`id,description,id`	`id`, followed by `description` (the final id is ignored)

You can use the minus (-) to take attributes out of the ad-hoc group:

Ad-hoc Group	Usage
`description,-status`	The content of the `description` group without the attribute `status`
`id,description,-id,id`	The `description` group followed by `id`

Reserved Groups

There are a number of reserved groups.

Reserved Group	Usage
`+`	Synonym for the primary key of an entity
`label`	Relevant for foreign keys; see here for more info
`search`	Relevant for quick search tables' see here for more info
`description`	Standard group used for columns in a table
`@`	Synonym for all attributes
`*`	Synonym for all attributes without the explicit attributes; see here for more info
`!`	Synonym for the audit attributes; see here for more info
`!!`	Refers to `cmUpdatedId`; see here for more info
`null`	A group with no attributes
`empty`	Synonym for `null`
`~`	The attributes that have been touched (see here)
`~~`	The attributes that are dirty (see here)

Formatted vs Raw Values

The term raw value is used to refer to the value as it is stored in the database. The alternative of the raw value is the formatted value. The formatted value will take the raw value and format it as per the definition of the attribute.

There are a number of scenarios where the raw value and the formatted value differ:

Scenario	Details
Options	Label associated with raw value is displayed; see here
Foreign key	The label attribute group of the foreign key entity is displayed; se here
Output mask	The output mask is applied to the raw value
Password	A series of asteriks (`*`) is displayed
JSON formatted path	See here
Numeric	Numeric values are displayed according to local culture and precision (where applicable)
Date / time	Date / time values are displayed according to local culture

Display Size

The display size option of an attribute dictates the width of the attribute on an edit form.

Take the following example:

        text1: <@bo/attribute
            label: 'Full'
            dataType: datatype.String
            length: 200
            displaySize: <@bo/attribute/property/displaySize/full>
        >
        text2: <@bo/attribute
            label: 'Half'
            dataType: datatype.String
            length: 200
            displaySize: <@bo/attribute/property/displaySize/half>
        >
        text3: <@bo/attribute
            label: 'Md'
            dataType: datatype.String
            length: 200
            displaySize: <@bo/attribute/property/displaySize/md>
        >
        text4: <@bo/attribute
            label: 'Sm'
            dataType: datatype.String
            length: 200
            displaySize: <@bo/attribute/property/displaySize/sm>
        >
        text5: <@bo/attribute
            label: 'Narrow'
            dataType: datatype.String
            length: 200
            displaySize: <@bo/attribute/property/displaySize/narrow>
        >

This will render as follows:

Display sizes

Dynamic Attributes

Dynamic attributes are attributes whose value is based on an expression (and thus does not come from the database).

By this definition, a dynamic attribute does not have a column (as the data is not stored in the database) and is locked (as the data cannot be edited by the user).

Imagine an entity client which has the attributes firstName, middleName and surName. A logical dynmaic attribute would be one that displays the fullname. This could be implemented as per following example:

    _fullName: <@bo/attribute/dynamic
        label: 'Name'
        dynamicValue: $buildString(
            ' ',
            bo.attr( [_me], 'firstName' ),
            bo.attr( [_me], 'middleName' ),
            bo.attr( [_me], 'surName' )
        )
        ensureLoadGroup: 'title,firstName,middleName,surName'
        sortAttr: 'firstName'
    >

Example of result:

Dynamic attributes

The name _fullName shows a common naming convention where dynamic attributes have a name that starts with an underscore (_) to set them apart. This is not a requirement but makes it easier to recognize a dynamic attribute
The qualifier <@bo/attribute/dynamic> has all the logical default settings for a dynamic attribute. The default datatype is a string but you can also explicitly add a datatype tag
The dynamicValue tag has the expression that is used to provide the value. Note the dollar sign ($) in front of the expression which is essential. This is explained in more detail here
The ensureLoadGroup tag can be used to tell CaseMaster that certain attributes must be present in order to successfully evaluate the dynamic value expression. CaseMaster will ensure that these values are loaded from the database (when possible)
The sortAttr tag can be used to allow sorting on the dynamic attribute in a list. Normally, you cannot sort on a dynamic attribute as sorting is done through the database. Often, the order of dynamic attribute values is directly linked to a traditional attribute (i.e. one that is linked to a column in the database)

The HTMLSafe Option

A dynamic attribute may return HTML. Normally, CaseMaster will encode HTML to limit the chances of HTML injection, a common way of hacking a system.

Use the htmlSafe tag when:

A dynamic attribute returns HTML and you are sure the content is never harmful
A standard attribute may contain HTML and you are sure the content is never harmful

    _status: <@bo/attribute/dynamic
        label: <@mlText 'Status'>
        ensureLoadGroup: 'status,salesOrder'
        sortAttr: 'status'
        dynamicValue: $bo.invoke( [_me], 'getStatus', html:true() )
        plainTextAttr: '_statusTextOnly'
        htmlSafe: true()
    >

The difference between htmlSafe:false() and htmlSafe:true() is shown here:

htmlSafe

Explicit Attributes

We have seen before that * and @ are both reserved attribute group names. @ is short for all attributes and * is short for all implicit attributes. All attributes are implicit unless they have been marked as explicit using the explicit tag. Dynamic attributes are by default marked as explicit. For illustration only, the explicit tag has been added and set to true().

    _fullName: <@bo/attribute/dynamic
        label: 'Name'
        dynamicValue: $buildString(
            ' ',
            bo.attr( [_me], 'firstName' ),
            bo.attr( [_me], 'middleName' ),
            bo.attr( [_me], 'surName' )
        )
        ensureLoadGroup: 'title,firstName,middleName,surName'
        sortAttr: 'firstName'
        explicit: true()
    >

Many CaseMaster functions use * as the default attribute group. And many developers are economic coders (I avoid to use the word 'lazy') and do not set the optional attribute group parameter so thew system defaults to all implicit attributes.

A dynamic attribute can have have an expression that may include complex calculations or database calls. Evaluating the expression when you are not really interested in the value would be a waste of server resources.

By marking a dynamic attribute as explicit (which is the default), the dynamic attribute is ignored whenever the system does an operation on the * attribute group (because the developer is such an economic coder).

When are Dynamic Attributes Evaluated

CaseMaster tries to be efficient and will only evaluate the dynamic value expression when it has to.

Effectively, the expression is only evaluated once per persist life cycle. The concept of the persist life cycle is explained here but can be summarized as follows:

A persist life cycle starts when one of the following is true
When a new BO is created
When a BO is reset using the bo.reset() function
When a BO is read from the database (which can be done in a number of ways)
A persist life cycle starte when
A new persist life cycle is started

You typically do not have to worry about this and assume the default behaviour of CaseMaster is fine. I would say that when you know you need to worry about this, you are such an advanced CaseMaster developer that you do not need to read the how and why in this document.

The Cached Tag

Ok, so if you do have to worry about the timing of evaluation, you simply set the cached tag to false().

    _fullName: <@bo/attribute/dynamic
        label: 'Name'
        dynamicValue: $buildString(
            ' ',
            bo.attr( [_me], 'firstName' ),
            bo.attr( [_me], 'middleName' ),
            bo.attr( [_me], 'surName' )
        )
        ensureLoadGroup: 'title,firstName,middleName,surName'
        sortAttr: 'firstName'
        explicit: true()
        cached: true()
    >

Note that this can easily double the times that the dynamic value expression is evaluated.

Virtual Columns

The virtual column feature is highly advanced and is often used in one of the following scenarios:

You need an attribute that you would typically implement as a dynamic attribute but the user mst be able to search on the value of the attribute. You can not search on a dynamic value because searching is done using the database
The user must be able to sort on the attribute but the sortAttr trick (as explained here) does not work
The performance is better when done through the database than it would be when done as a dynamic attribute

    // This virtual column has been added for performance
    _applicationStatus: <@bo/attribute
        label: 'Application status'
        column: '( select max(status) from edApplication where journey=@me.id and status in (2, 3) )'
        virtualColumn: true()
        dataType: dataType.Long
        length: 9
        options: <
            <value: 2 label: 'Interview pending' >
            <value: 3 label: 'Offer made' >
        >
        explicit: true()
    >

Notes:

We have again used the underscore naming convention to make the attribute stand out as special
We have used the explicit tag to ensure the attribute is ignored when we rely on the default * attribute group

The column is now a SQL statement that is meaningful in a select statement on the table associated with this entity.

In this SQL you can refer to @me to mean 'this table'.

Virtual columns are excluded from insert and update statements.

Encrypted Columns

You can use the encrypted feature to store highly sensitive data in the database as an encrypted string. This means the data is unusable if anyone ever has direct access to the database.

    medicalInfo: <@bo/attribute
        label: 'Medical info'
        column: 'medicalInfo'
        encryption: <@bo/attribute/property/encryption>
        dataType: datatype.String
        length: 200
    >

Important note: if you ever change the encryption settings of your application, the data can no longer be read. Read more about security (and CaseMaster encryption) here.

Attribute Enhancers

Attribute enhancers are used to enhance the appearance of an attribute on screen. There are many enhancers that you can add; this feature will be covered in more detail here.

    icon: <@bo/attribute
        label: 'Icon'
        column: 'icon'
        dataType: dataType.String
        length: 100
        enhancers: <@bo/attribute/property/enhancers
            postInput: <@page/text/small
                class: 'text-muted',
                content: 'Font Awesome icone name'
            >
        >
    >

The on-screen effect of the enhancer above:

Enhancers

Attribute Tags

We have already learned about tags on entities here.

Tags have two purposes; you can add custom tags to an attribute for use somewhere in your system. This can be useful when are writing generic code. You may want to use a specific tag to drive certain behaviour.

The following example shows a snippet of code where a specific tag is checked.

    if boDesc.getAttrTag( [BO], [attr], 'sensitive' )
        // Do something special
    else
        // Do something else
    end-if

Each tag is a property bag tag:

    dob: <@bo/attribute/date
        label: 'Date of birth'
        column: 'dob'
        tags: <
            sensitive: false()
        >
    >

There is a number of reserved attribute tag names that have a specific meaning for CaseMaster. These are:

Tag	Usage	Example
alias	Alias for attribute so you can access attribute by multiple names; mainly used for application migration purposes	`zXUpdtdWhn`
qsearchEntitySize	Force the entity size for qsearch purposes	`0`
soundex	Flags this attribute as a soundex value	`true()`

Read here about quick search and entity size
Read here about soundex

<End of document>
